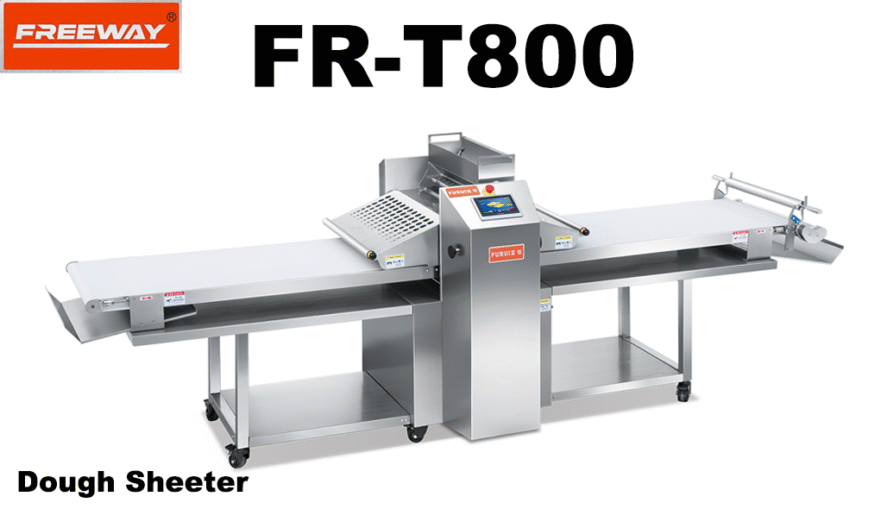

Numerical Control dough sheeter FR-T800

Technical Specifications

Electrical:                               220 V / 50 or 60 Hz / 3 Phase

Power:                                     2.1 kW

Working position dimensions (DWH):     4106 x 1178 x 1351 mm

Machine weight:                   420kg

Machine body material:      Stainless steel

Conveyor belt width:            630 mm

Conveyor belt length:          3500 mm

Conveyor belt material:       PU

Roller Diameter:                   90 mm

Automatic flour duster:       YES

Maximum product/recipe no.: 50 records

Dought sheet thickness range: 0.8 ~ 45 mm

Maximum dough weight:    20kg



  • Product Details

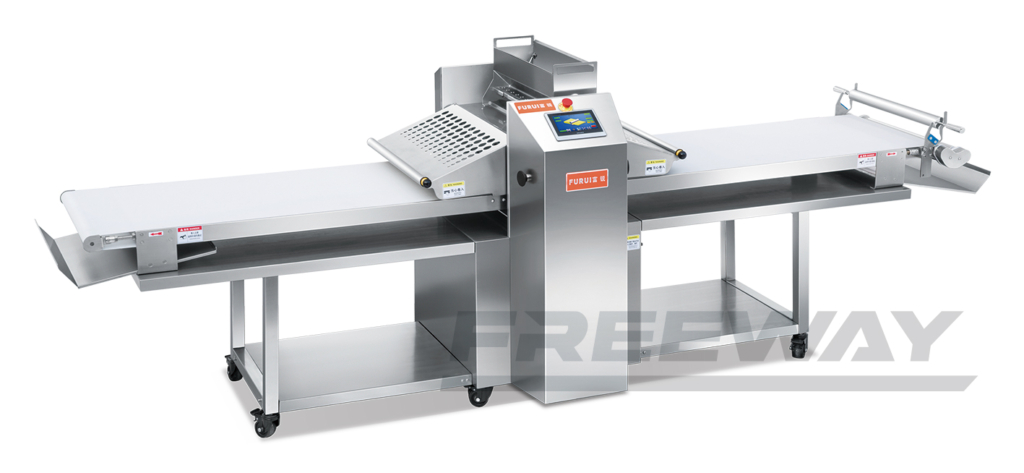

FR-T800 Numerical Control dough sheeter


The FR-T800 Numerical Control dough sheeter has a micro-embedded computer and LCD touch panel. These provide user-friendly interaction tools, making it easy to operate.

It allows users to create their own product programs, set and save their customized parameters, such as dough thickness, dough width, roller gap adjustment, belt speed, flour duster on/off.


Once the user selects a specific product program and press start button, the machine will automatically work in accordance with pre-setting parameters.
There are highly-sensitive sensors which can detect the physical change of the dough sheet size with error range in millimeter.
Once the machine reaches the desired width, it will automatically shut off. Then, the user can proceed with next work.
Applying this machinery means great leap forward of efficiency and accuracy in mass production.
